Sections 2.2 and 2.2.1: Integer Representation

• Be familiar with the C data types:
  char, short, int, long, long long,
  and the corresponding unsigned types:
  unsigned char, unsigned short, unsigned, unsigned long, unsigned long long.
• The maximum and minimum values of these are defined by macros:
  CHAR_MAX, CHAR_MIN, SHRT_MAX, SHRT_MIN, INT_MAX, INT_MIN, LONG_MAX, LONG_MIN, LLONG_MAX, LLONG_MIN
  and the corresponding unsigned macros:
  UCHAR_MAX, USHRT_MAX, UINT_MAX, ULONG_MAX, and ULLONG_MAX.
  Why no UCHAR_MIN, USHRT_MIN, etc?
• The C standard does not set the value of these but does set minimum values.
  For example, CHAR_MAX is at least 127 and INT_MAX is at least 32767.
• Java only supports signed integers and sets the min and max values that can be stored in a byte, short, int and long.
• The C standard defines data types for exact-size integers, most notably uint16_t and uint32_t.

Section 2.2.2: Unsigned encodings

• There is only one standard way of encoding unsigned integers.
• Integer data type of w bits.
• Bit vector x = [x_w-1, x_w-2, ..., x₁,x₀]
• B2U_w(x) = x₀2⁰ + x₁2¹ + ... + x_w-12^w-1
• Each integer between 0 and 2^w - 1 has a unique representation using w bits.

Section 2.2.3: Two's complement (and other) encodings

• There are 3 standard ways to encode signed integers:
  • two's complement
  • ones' complement
  • sign-magnitude
• In each of these the high order bit is 1 for negative values and 0 for positive values.
• Positive values are encoded as in Section 2.2.2 using all but the high order bit.
• For a w-bit word, the largest value that can be stored is 2^w-1-1.
• There are several ways to describe the way negative values are stored in each of the three schemes.
• two's complement: w bits, n is negative with magnitude at most 2^w-1.
  • To find the binary representation from the number:
    Compute 2^w + n and store the resulting positive value.
    Example: w = 4, n = -5: compute 16 + (-5) = 11 = [1011].
    Note that the high order bit will always be 1.
  • To find the number from the binary representation:
    Compute the value in all but the high order bit.
    if the high order bit is 1, add -2^w-1
  • To find the binary representation from the number:
    Compute the one's complement and add 1.
  Twos Complement Examples
• ones' complement: w bits, n is negative with magnitude at most 2^w-1 - 1.
  • To find the binary representation from the number:
    Store the magnitude of n in binary and complement each bit (including the high order bit).
  • To find the number from the binary representation:
    Compute the value in all but the high order bit.
    if the high order bit is 1, add -(2^w-1 - 1)
• sign-magnitude: w bits, n is negative with magnitude at most 2^w-1 - 1.
  Store the magnitude in the low (w-1) bits and set the high order bit to 1.
• Different representations for negative integers for w = 4:

  n	magnitude in binary	two's complement	ones-complement	sign-magnitude
  -0	0000		1111	1000
  -1	0001	1111	1110	1001
  -2	0010	1110	1101	1010
  -3	0011	1101	1100	1011
  -4	0100	1100	1011	1100
  -5	0101	1011	1010	1101
  -6	0110	1010	1001	1110
  -7	0111	1001	1000	1111
  -8	1000	1000

• Why choose one encoding scheme over another?
  • range of values
  • transparency
  • calculation complexity
• Main advantage of two's complement: addition requires the same hardware for signed and unsigned numbers.
• Other advantages: no negative 0
• Almost all modern machines use two's complement encoding for negative integers.

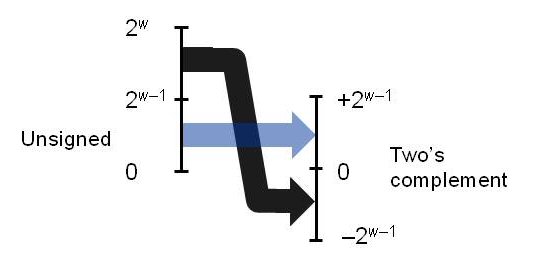

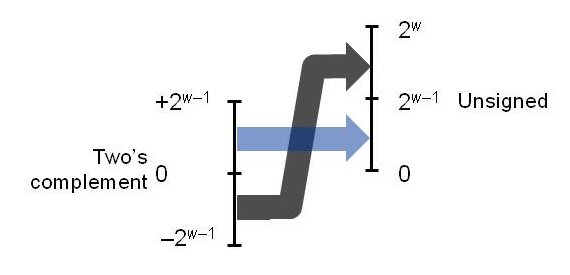

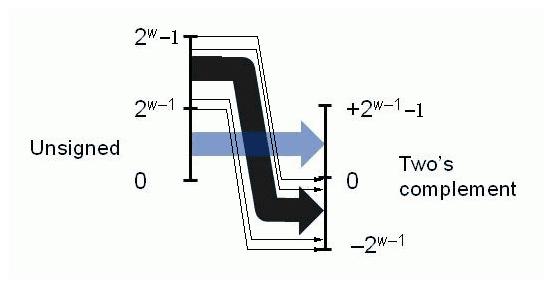

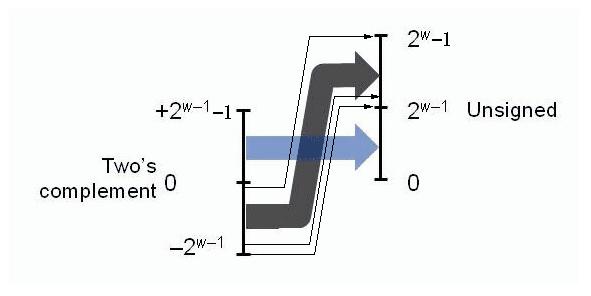

Sections 2.2.4 and 2.2.5: Conversions between signed and unsigned

• This works as long as the conversion is valid.
• When it fails, the result depends on the number of bits used for the converted type.
• Can fail when a negative value is converted to an unsigned.
  Example 1:
  w=4, convert -3 to unsigned:
  -3 = [1101]
  converted value is [1101] = 13
  Example 2:
  Assuming that an int is 32 bits
      int x = -1;
      unsigned y = x;
      printf("%d %u %d %u\n",x,x,y,y);
  -1 4294967295 -1 4294967295
• Can fail when a large unsigned value is converted to a signed value.
  Example:
  w=4, convert 13 to signed:
  13 = [1101]
  converted value is [1101] = -3
  Assuming that an int is 32 bits
      unsigned x = INT_MAX;
      int y = x;
      printf("%d %u %d %u\n",x,x,y,y);
      x++;
      printf("%d %u %d %u\n",x,x,y,y);
  2147483647 2147483647 2147483647 2147483647
  -2147483648 2147483648 2147483647 2147483647
• When an arithmetic operation (add, sub, mult, div, compare) is done using one signed and one unsigned value, the signed value is converted to unsigned and the result is unsigned.
  Example: -1 < 0U is false because -1 is converted to a large unsigned value.

Section 2.2.6: Expanding the bit representation of a number

• For positive values (and zero) just fill new bits with 0.
• For negative values, fill the new bits with 1's.
• This is called sign extension.
• In either case, fill the new bits with the sign bit.
  Example:
  T2B₄(-5) = [1011]: 2⁴ - 5 = 16 - 5 = 11 = [1011]
  T2B₈(-5) = [11111011]: 2⁸ - 5 = 256 - 5 = 251 = [11111011]

Section 2.2.7: Truncating numbers

• When you cast a number to a smaller precision, the high order bits are thrown away.
• If the number is unsigned, casting to k bits is equivalent to taking the number modulo 2^k.
• If the number is signed, casting can change a positive value to negative or a negative to a positive.
• To find out what happens, look at the bit pattern.
• Your programs should alway try to avoid this.
• Example:
  Assume ints are 32 bits and shorts are 16 bits with two's complement.
      int x = 43210;
      int y = -43210;
      short sx = (short)x;
      short sy = (short)y;
      printf("%d %d %d %d\n",x,y,(int)sx,(int)sy);
  Produces the output:
  43210 -43210 -22326 22326
  Why?
  43210 = 0xa8ca = [000...000 1010 1000 1100 1010]
  -43210 =         [111...111 0101 0111 0011 0110] = 0xffff5736
  (short)43210 =             [1010 1000 1100 1010] = - [0101 0111 0011 0110] = -0x5736 = -22326
  (short)(-43210) = 0x5736 = 22326


Section 2.2.8: Advice on signed and unsigned numbers

int sum(int a[], unsigned length) {
   int i;
   int result = 0;
   for (i=0; i <= length-1; i++)
      result += a[i];
   return result;
}

Signed and unsigned numbers
