Process Schedule Log for Local User generated Mon Mar 05 10:12:49 CST 2001

Process Scheduling Simulator version 1.044L120 by S. Robbins supported by NSF grants DUE-9750953 and DUE-9752165.
See /nsf for simulator information.
Java version 1.1.7 OS Solaris version 2.x 18514398874
Group Information for 2 Groups
Name Commentary Duration CPU Burst I/O Burst Priority
part3_group_1 Group 1 from run part3 constant 20000.00 constant 1000.00 constant 90.00 1.00
part3_group_2 Group 2 from run part3 constant 200.00 constant 10.00 constant 90.00 1.00

Creator Information for 1 Creator
Name Commentary Seed Group Processes First Arrival Interarrival
part3_creator Creator from run part3 5000 part3_group_1 1 0.0 constant 0.00
part3_group_2 10 1.0 constant 0.00

Experimental Run Information for 1 Run
Name Commentary Creator Algorithm Key
part3 Assignment 2, Part 3 part3_creator SJF
Experimental Runs For 1 Experiment
Experiment Commentary Run Modifications
part3 Assignment 2, Part 3 part3_1 algorithm FCFS
key FCFS
part3_2 algorithm SJF
key SJF
part3_3 algorithm SJFA 0.0
key SJFA 0.0
part3_4 algorithm SJFA 0.1
key SJFA 0.1
part3_5 algorithm SJFA 0.5
key SJFA 0.5
part3_6 algorithm SJFA 0.9
key SJFA 0.9
part3_7 algorithm SJFA 1.0
key SJFA 1.0

Starting experiment of 7 runs from part3

Mon Mar 05 10:12:51 CST 2001

Starting run from part3_1

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_1 Assignment 2, Part 3 part3_creator FCFS
Starting to run events using FCFS
661 events done in 872 milliseconds
Mon Mar 05 10:12:52 CST 2001

Starting run from part3_2

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_2 Assignment 2, Part 3 part3_creator SJF
Starting to run events using SJF
661 events done in 884 milliseconds
Mon Mar 05 10:12:53 CST 2001

Starting run from part3_3

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_3 Assignment 2, Part 3 part3_creator SJFA 0.0
Starting to run events using SJFA 0.00
661 events done in 952 milliseconds
Mon Mar 05 10:12:54 CST 2001

Starting run from part3_4

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_4 Assignment 2, Part 3 part3_creator SJFA 0.1
Starting to run events using SJFA .10
661 events done in 989 milliseconds
Mon Mar 05 10:12:55 CST 2001

Starting run from part3_5

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_5 Assignment 2, Part 3 part3_creator SJFA 0.5
Starting to run events using SJFA .50
661 events done in 1249 milliseconds
Mon Mar 05 10:12:57 CST 2001

Starting run from part3_6

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_6 Assignment 2, Part 3 part3_creator SJFA 0.9
Starting to run events using SJFA .90
661 events done in 1273 milliseconds
Mon Mar 05 10:12:58 CST 2001

Starting run from part3_7

Experimental Run Information
Name Commentary Creator Algorithm Key
part3_7 Assignment 2, Part 3 part3_creator SJFA 1.0
Starting to run events using SJFA 1.00
661 events done in 1375 milliseconds

Mon Mar 05 10:13:05 CST 2001

Description Algorithm Time Processes Finished CPU Utilization Throughput Turnaround Time Waiting Time
part3_1 FCFS 22000.00 11 11 1.00000 .000500 21949.09 18239.09
part3_2 SJF 23620.00 11 11 .93141 .000466 4832.73 1122.73
part3_3 SJFA 0.00 22000.00 11 11 1.00000 .000500 21949.09 18239.09
part3_4 SJFA .10 23620.00 11 11 .93141 .000466 4832.73 1122.73
part3_5 SJFA .50 23620.00 11 11 .93141 .000466 4832.73 1122.73
part3_6 SJFA .90 23620.00 11 11 .93141 .000466 4832.73 1122.73
part3_7 SJFA 1.00 23620.00 11 11 .93141 .000466 4832.73 1122.73


Turnaround Time Waiting Time
Description Algorithm Average Minimum Maximum SD Average Minimum Maximum SD
part3_1 FCFS 21949.09 21900.00 21999.00 31.48 18239.09 190.00 20089.00 518.88
part3_2 SJF 4832.73 2909.00 23620.00 5941.12 1122.73 999.00 1910.00 22.77
part3_3 SJFA 0.00 21949.09 21900.00 21999.00 31.48 18239.09 190.00 20089.00 518.88
part3_4 SJFA .10 4832.73 2909.00 23620.00 5941.12 1122.73 999.00 1910.00 22.77
part3_5 SJFA .50 4832.73 2909.00 23620.00 5941.12 1122.73 999.00 1910.00 22.77
part3_6 SJFA .90 4832.73 2909.00 23620.00 5941.12 1122.73 999.00 1910.00 22.77
part3_7 SJFA 1.00 4832.73 2909.00 23620.00 5941.12 1122.73 999.00 1910.00 22.77


Mon Mar 05 10:13:18 CST 2001

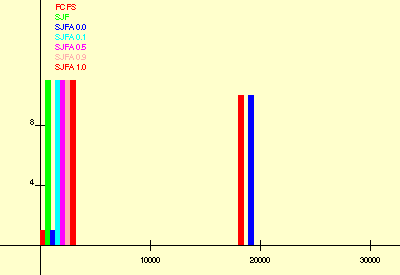

Bins: 10 Min: 0.00 Max: 30000.00
Waiting Time

Mon Mar 05 10:13:28 CST 2001

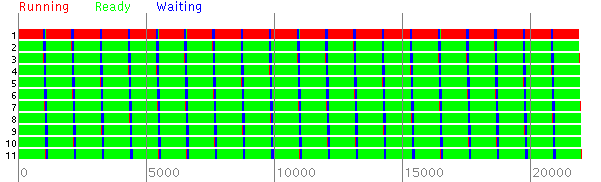

Gantt Chart for FCFS

Mon Mar 05 10:13:40 CST 2001

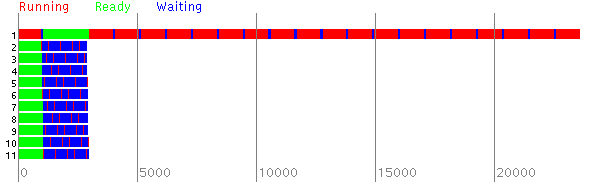

Gantt Chart for SJF

Mon Mar 05 10:13:50 CST 2001


Gantt Chart for SJFA 0.5

Process Schedule Log for Local User completed Mon Mar 05 10:13:57 CST 2001
