Process Schedule Log for Steven Robbins generated Mon Mar 01 20:16:42 CST 1999
Process Scheduling Simulator
Beta 0.994L058 by S. Robbins
supported by NSF grants
DUE-9750953 and DUE-9752165.
See /nsf for simulator information.
Java version 1.1.6 OS Solaris version 2.x 16601386822
| Group Information for 2 Groups
|
| Name |
Commentary |
Duration |
CPU Burst |
I/O Burst |
Priority |
part1_group_1 |
Group 1 from run part1 |
uniform 1000.00 2000.00 |
exponential 100.00 |
constant 1000.00 |
1.00 |
part1_group_2 |
Group 2 from run part1 |
uniform 200.00 400.00 |
exponential 20.00 |
constant 100.00 |
1.00 |
| Creator Information for 1 Creator
|
| Name |
Commentary |
Seed |
Group |
Processes |
First Arrival |
Interarrival |
| part1_creator |
Creator from run part1 |
123456 |
part1_group_1 |
10 |
0.0 |
constant 0.00 |
| | | part1_group_2 |
10 |
0.0 |
constant 0.00 |
| Experimental Run Information for 1 Run
|
| Name |
Commentary |
Creator |
Algorithm |
Key |
part1 |
Two types of processes |
part1_creator |
RR200.0 |
| Experimental Runs For 1 Experiment
|
| Experiment |
Commentary |
Run |
Modifications |
| part1 |
Two runs with different quantums |
part1_1 |
key Round Robin: Quantum = 200 |
| |
|
part1_2 |
algorithm RR 20 |
| | | key Round Robin: Quantum = 20 |
Starting experiment of 2 runs from part1
Mon Mar 01 20:16:43 CST 1999
Starting run from part1_1
| Experimental Run Information
|
| Name |
Commentary |
Creator |
Algorithm |
Key |
part1_1 |
Two types of processes |
part1_creator |
RR200.0 |
Starting to run events using RR 200.00
990 events done in 467 milliseconds
Mon Mar 01 20:16:44 CST 1999
Starting run from part1_2
| Experimental Run Information
|
| Name |
Commentary |
Creator |
Algorithm |
Key |
part1_2 |
Two types of processes |
part1_creator |
RR 20 |
Starting to run events using RR 20.00
2604 events done in 1320 milliseconds
Mon Mar 01 20:16:48 CST 1999
| Description |
Algorithm |
Time |
Processes |
Finished |
CPU Utilization |
Throughput |
Turnaround Time |
Waiting Time |
part1_1 |
RR 200.00 |
27837.96 |
20 |
20 |
.69589 |
.000718 |
14635.04 |
4811.43 |
part1_2 |
RR 20.00 |
28427.89 |
20 |
20 |
.68145 |
.000704 |
14389.78 |
4566.18 |
|
|
Turnaround Time |
Waiting Time |
| Description |
Algorithm |
Average |
Minimum |
Maximum |
SD |
Average |
Minimum |
Maximum |
SD |
part1_1 |
RR 200.00 |
14635.04 |
5783.28 |
27837.96 |
8088.04 |
4811.43 |
2764.39 |
6842.14 |
62.15 |
part1_2 |
RR 20.00 |
14389.78 |
3906.61 |
28427.89 |
9362.31 |
4566.18 |
2974.55 |
6739.06 |
44.61 |
Mon Mar 01 20:16:51 CST 1999

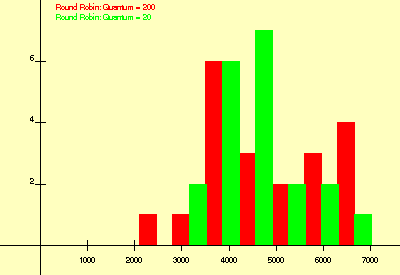

Waiting Time
Bins: 10 Min: 0.00 Max: 7000.00
Mon Mar 01 20:17:03 CST 1999

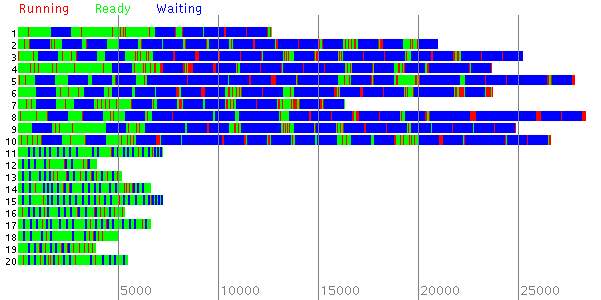

Gantt Chart for Round Robin: Quantum = 200
Mon Mar 01 20:17:17 CST 1999

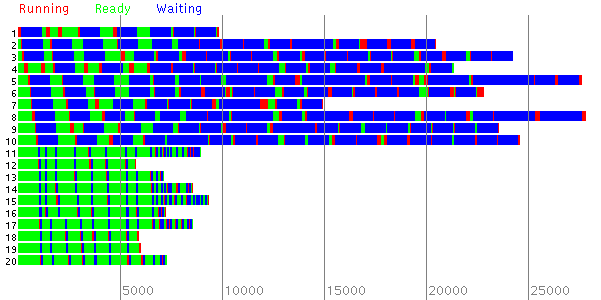

Gantt Chart for Round Robin: Quantum = 20
Process Schedule Log for Steven Robbins completed Mon Mar 01 20:17:25 CST 1999
This experiment consists of two runs with the same set of processes using
Round Robin with two different quantums.
A set of 10 long (CPU burst) jobs enters the ready queue first,
followed by a set of shorter jobs.
When the quantum is large, the first set of processes execute for a long time
making the shorter processes wait. When the quantum is shorter, comparable to
the burst time of the shorter processes, these short processes wait less time
and leave the system sooner, reducing the average waiting time by a small
amount.
This is most readily seem by comparing the Gantt charts fo the two runs.
The second Gantt chart shows that the last 10 processes spend less time
in the ready queue (the green part of the chart).
